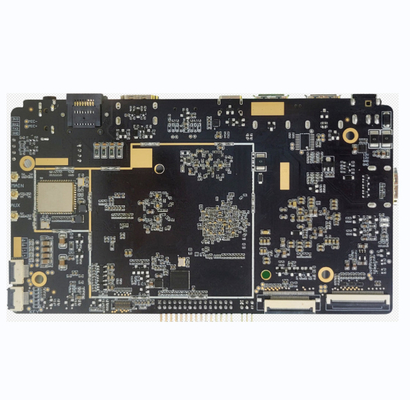

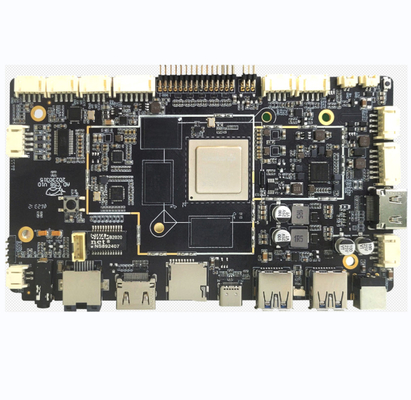

RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control

RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control
RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control

Большие изображения :  RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control

Подробная информация о продукте:
Place of Origin: CHINA
Фирменное наименование: SUNCHIP & ADW
Model Number: AD-C58
Оплата и доставка Условия:
Minimum Order Quantity: 1PCS
Цена: лично переговорить
Packaging Details: 60pcs/box or suitable qty in a carton
Delivery Time: Samples: 1-3 days; MP: 20-30 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 60000PCS/Month

RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control

описание
CPU: RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 GPU: ARM Mali G610 MP4 GPU
OS: Android 12 LAN: Support 1000M wired network network
RAM: 8GB/16G (optional) NPU: 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios
Main frequency: The main frequency of the large core is 2.4GHz, and the main frequency of the small core is 1.7GHz Warranty: 1 year or negotiate



Sunchip RK3588 Industrial Android Embedded Board SystemUSB/LVDS/1000M LAN/WIFI6/BT5.2/EDP



Product Model: AD-C58

Product Name: RK3588 Embedded Board



The large board of the intelligent industrial all-in-one machine adopts Rockchip RK3588 eight-core chip solution. Support Android 12 system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.





Product Features:

1, Support LVDS, MIPI, EDP interface display three-screen simultaneous/different display + HDMI OUT (up to 8K@60FPS), HDMI IN (up to 8K@60FPS)



2, Various interactive mode interfaces: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.



3, Multiple network interfaces: Ethernet (Gigabit), Wireless Wifi (Wifi6), Bluetooth 5.2.



4, Multi-channel USB interface, serial port.



5, Strong anti-electromagnetic interference and electromagnetic compatibility.





CPU Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55
Main frequency The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz
GPU ARM Mali-G610 MC4
  OpenGL ES 1.1/2.0/3.1/3.2
  Vulkan 1.1,1.2
  OpenCL 1.1,1.2,2.0
  Embedded high-performance 2D image acceleration module
NPU 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios
Memory 4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x
Built-in storage capacity EMMC 32G/64G/128G/256G(optional)
Display interface HD  OUT(up to 8K@60FPS)
  HD IN(Up to 8K@60FPS)
  LVDS display interface
  EDP display interface
  MIPI display interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
Network With RJ45 interface, support 10/100/1000M Ethernet.
  Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel BT WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function
Real Time Clock Built-in real-time clock powered by battery



Interface device

Support MIPI interface camera, support 500W pixels
  3 USB HOST 2.0 (4PIN2.0 spacing connectors) All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals
  2 USB HOST3.0 (standard interface)
  1 full-featured Type-C interface (OTG)
  3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.)
  TF card, maximum support 128GB
  Class D power amplifier: default 3W*2 8 ohms, support microphone
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video

Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS

Support H.264/H.265 video encoding, up to 8K30FPS

Picture Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions
Power Adapter Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside)



Operating system Android 12 and above
Basic software function Web browsing, web chat, email, e-books, explorer
Sound mode Clock, Alarm Clock, Calculator, Recording
Language support Multi-lingual
Recording Support MP3, WMA format recording
Tools Calendar
  Alarm Clock
  Calculator
  Note
  Weather+clock
  recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input method Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
  GOOGLE Market
  Email
  Gmail
  Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
  Original ecological Android system, open root permission, and can carry out product customization development
  Customizable local or remote server management system
  Support multiple third-party Android remote advertising publishingsystems
  Support multiple serial devices, USB devices, IO control devices


RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control 0



RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control 1RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control 2



RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control 3RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control 4



RK3588 Embedded System Board with Ethernet Wifi6 and Bluetooth 5.2 for Intelligent Remote Control 5
